Digital Thermatic Fan Kit Adjustable Temperature Range 0444 Compatible with Radiator Fans Controller Switch Kit
Product details
| Management number | 215488998 | Release Date | 2026/04/12 | List Price | $59.94 | Model Number | 215488998 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

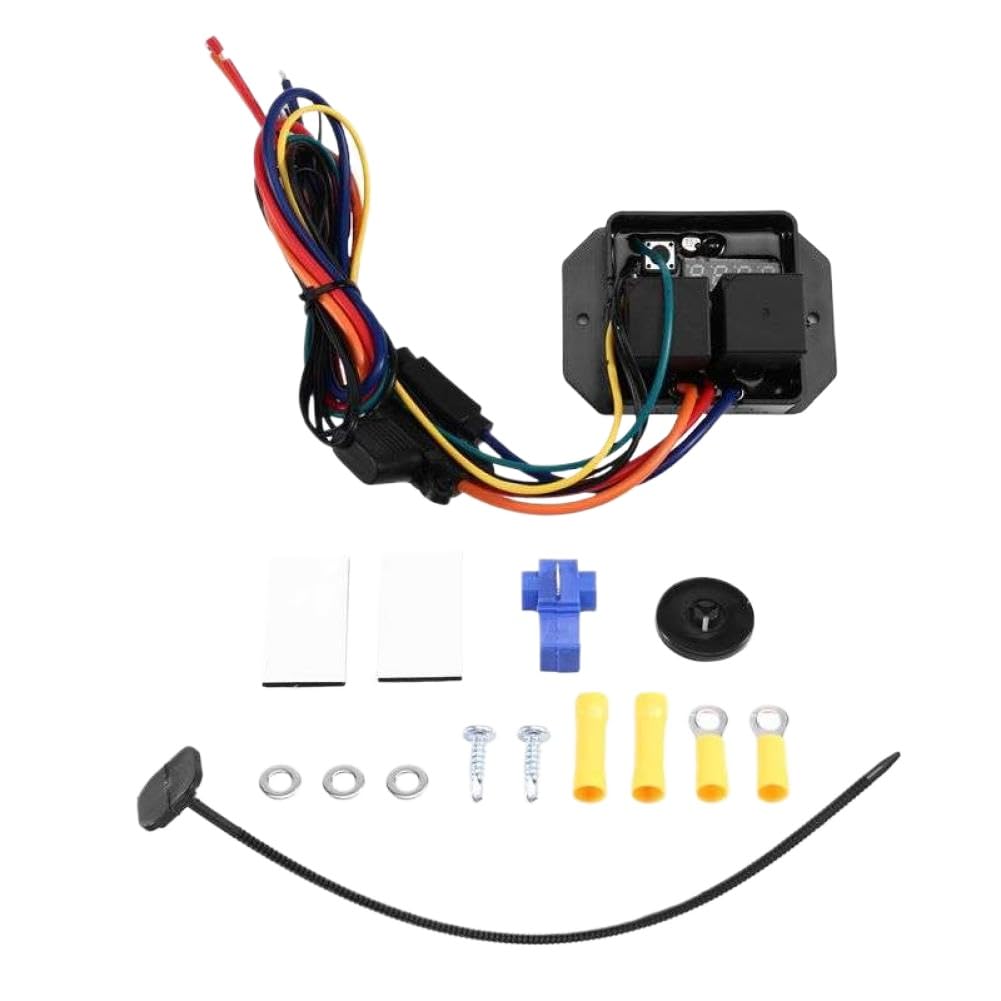

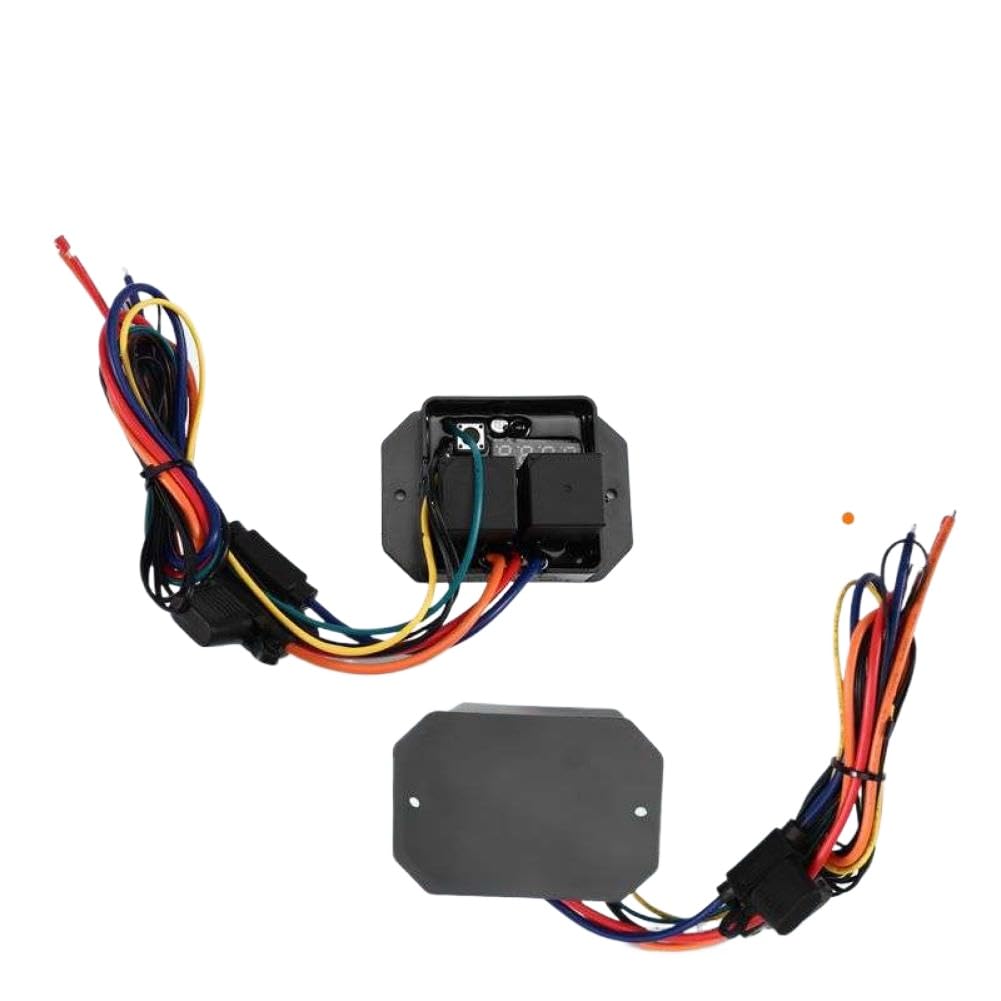

Adjustable Temperature Range 0444 Digital Thermatic Fan Kit Radiator Fans Controller Switch Kit This fan switch kit operates in 12 V or 24 V applications.Air Temperature Application: The temperature is installed in the radiator fin section as close to the hot coolant inlet as possible.It senses air temperature as it passes through the radiator and has an adjustable temperature range of 40°C to 110°C (104°F to 230°F).Water/Coolant Application: The unit can also be installed directly into the coolant system without cutting hoses.A Temperature Adaptor Kit (Part 0409) is required for this installation method.It is recommended to install the in the return hose from the radiator.Relay setup: Dual relay Fan speed: Single speed, with a 10-second delay before the second fan starts Compatibility: Suitable for single and dual fan applications Display: LED digital temperature display showing actual temperature and set temperature Temperature units: Selectable between Celsius and Fahrenheit Temperature settings: Adjustable from 40°C to 110°C (104°F to 230°F) Temperature adjustment: Push-button interface Color: As shown Material: Plastic Package contents: 1 × Digital Thermatic Fan Switch Kit
- Model supports precise temperature control from 40°F to 220°F (4°C to 104°C) for compatibility with most automotive and industrial cooling applications
- Digital LED display provides real-time temperature readout and intuitive adjustment via push-button interface
- Designed for 12V DC systems with dual-fan output capable of driving two radiator fans up to 30A total combined load
- Includes adjustable hysteresis setting to prevent rapid cycling and stable thermal regulation across varying engine loads
- Mounts easily in engine bays or control panels using included hardware and features waterproof probe for in harsh environments
| Color | oneColor |
|---|---|
| Model | SfneQYFbt 121 |
| Terminal | Spade |
| Brand Name | SfneQYFbt |
| Unit Count | 1.0 Count |
| Switch Type | Toggle |
| Circuit Type | ac_dc |
| Contact Type | Normally Open |
| Manufacturer | SfneQYFbt |
| Current Rating | 10 Amps |
| Operation Mode | Automatic |
| Item Dimensions | 1.97 x 1.18 x 0.79 inches |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 250 Volts |
| Specification Met | CE |
| Included Components | Parts set |
| Number of Positions | 2 |
| Upper Temperature Rating | 60 Degrees Celsius |
| International Protection Rating | ip20 |
